While most objects on IBM i have a pretty well defined size, indices are a different beast.

Let’s consider a table TABLE1 containing 10k lines without any index, the table is about 25MB. Let’s now create an index called INDEX1. Let’s now look at the INDEX1 size with DSPOBJD: First index size

The actual size of the index is 14MB, the offline is 0 which is normal since the index hasn’t been saved yet.

If we duplicate INDEX1 to INDEX2 with CRTDUPOBJ and look at INDEX2 size with DSPOBJD, we see its size is 49KB: Second index size

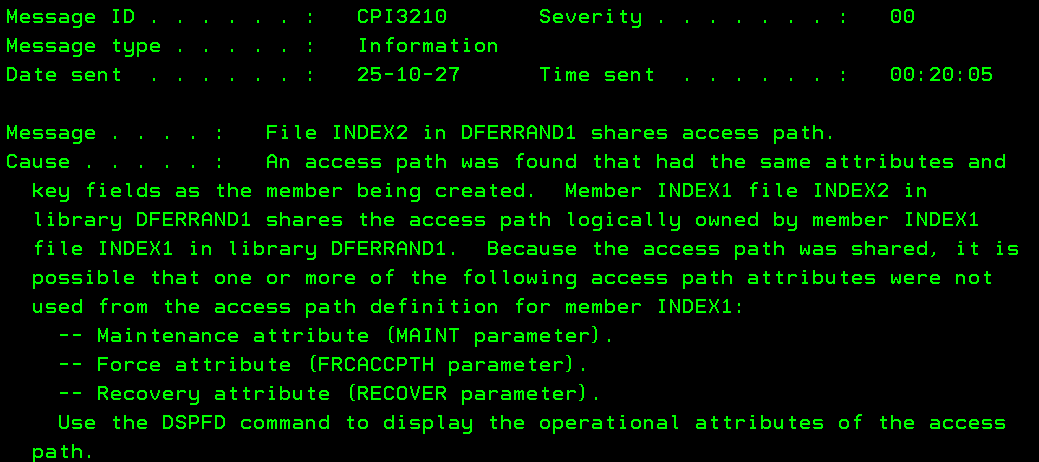

The reason for this difference can be found in the joblog after CRTDUPOBJ, the CPI3210 message: CPI3210 message

Since INDEX1 and INDEX2 are the same, the system duplicated the *FILE object but did not duplicate the access path which is the actual B-tree of the index. Both *FILE objects share the same access path. This has the following advantages:

  • The access path is, by far, the biggest part of an index object, having only one access path saves some disk space.
  • The database only has to maintain one access path when a record is added, updated, or deleted in the underlying table, reducing the CPU and IO load.
  • The query optimizer only considers the access paths reducing the CPU load even for SELECT operations.

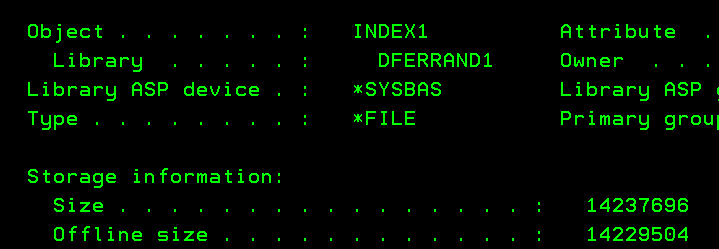

If we save INDEX1 and INDEX2 and look at their size with DSPOBJD: First index size after save Second index size after save

While the actual size hasn’t changed for both indices (14MB and 49KB), the offline size is now 14MB for both, that’s because the offline size accounts for all sections of the logical file whereas the size doesn’t.

INDEX1 owns the access path, that’s why it’s reporting the full size. On the other hand, INDEX2 uses the access path owned by INDEX1.

Using the DSPFD on the indices we can determine which one owns the access path.

If we delete INDEX1 and check INDEX2 with DSPOBJD, we see its size was changed to 14MB: Second_index_size_after_delete

That’s because the system transfered the ownership of the access path to INDEX2 when INDEX1 was deleted without having to rebuild it.

Of course, duplicating an index is generally not very useful, fortunately the system in also able to share access path in other cases, for example, if you create an index INDEX1 on fields FldA and FldB and then create an index INDEX2 on FldA only, the system will reuse INDEX1 access path for INDEX2. Note that if you were to create INDEX2 before INDEX1, there would be no sharing of access path.
